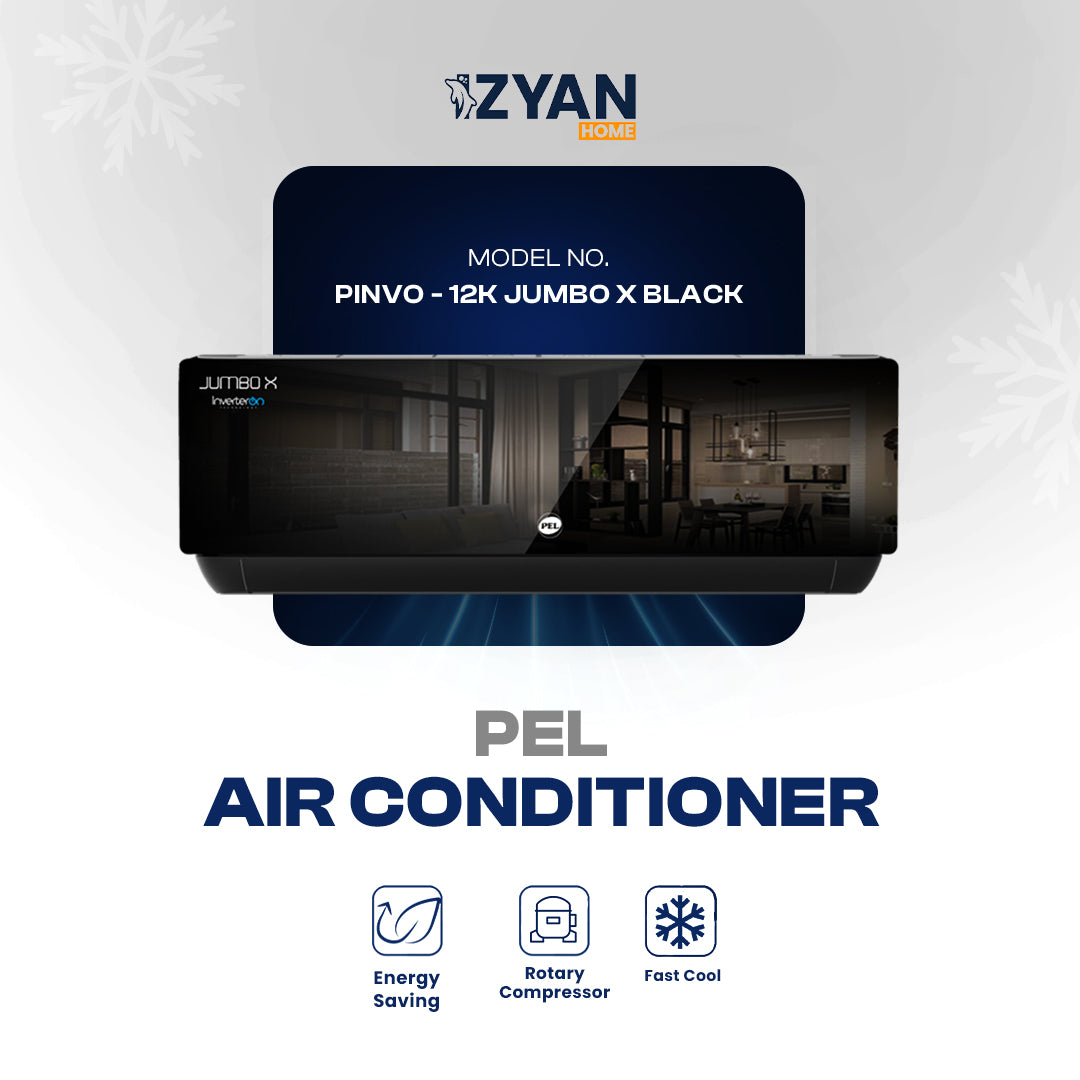

Pel Air Conditioner PINVO-JUMBO-X-BLACK Series

The 12K Jumbo X inverter AC delivers reliable cooling and heating with balanced energy efficiency. Featuring a rotary compressor and R32 refrigerant, it ensures stable temperature control, low noise operation, and consistent airflow for everyday comfort.

The 18K Jumbo X Black 1.5 Ton inverter AC is engineered for larger rooms. With advanced rotary compressor technology, R32 refrigerant, and high airflow output, it delivers rapid cooling and heating, low noise operation, and energy-efficient performance year-round.

• Cooling and heating operation for year-round comfort
• High-efficiency rotary compressor for stable performance
• Energy-saving inverter operation with EER 3.20
• Eco-friendly R32 refrigerant with optimized gas charge
• Strong airflow output for fast and even temperature control
• Low indoor and outdoor noise levels for quiet operation

• Cooling and heating operation for medium to large rooms
• High-efficiency rotary compressor with turbo airflow
• Energy-saving inverter operation with EER 3.18
• Eco-friendly R32 refrigerant with optimized gas charge
• Strong airflow output (higher m³/h) for fast and even temperature control
• Low indoor and outdoor noise levels for quiet operation

• Rated Cooling Capacity: 3520 W (800-4000 W)
• Rated Heating Capacity: 3550 W (800-4200 W)
• Cooling Power Consumption: 1100 W (300-1350 W)
• Heating Power Consumption: 970 W (300-1350 W)
• Cooling Running Current: 5.3 A (1.5-6.0 A)
• Heating Running Current: 4.6 A (1.5-6.0 A)
• Maximum Input Power: 1500 W
• Maximum Input Current: 8.5 A
• Energy Efficiency Ratio (Cooling): 3.20
• Power Supply: 220–240V / 50Hz
• Refrigerant Type: R32 (490 g)
• Air Flow Volume: 600 m³/h
• Indoor Noise Level: 42 dB(A)
• Outdoor Noise Level: 52 dB(A)
• Indoor Unit Weight: 8.5 Kg
• Outdoor Unit Weight: 22.5 Kg
• Indoor Dimensions (W×D×H): 792 × 292 × 201 mm
• Outdoor Dimensions (W×D×H): 705 × 279 × 530 mm
• Compressor Type: Rotary

• Rated Cooling Capacity: 5300 W (1200-5800 W)
• Rated Heating Capacity: 5250 W (1200-6000 W)
• Cooling Power Consumption: 1600 W (400-1800 W)
• Heating Power Consumption: 1400 W (400-1800 W)
• Cooling Running Current: 7.2 A (2.0-8.0 A)
• Heating Running Current: 6.5 A (2.0-7.5 A)
• Maximum Input Power: 2500 W
• Maximum Input Current: 12.0 A
• Energy Efficiency Ratio (Cooling): 3.18
• Power Supply: 220–240V / 50Hz
• Refrigerant Type: R32 (700 g)
• Air Flow Volume: 850 m³/h
• Indoor Noise Level: 44 dB(A)
• Outdoor Noise Level: 55 dB(A)
• Indoor Unit Weight: 12 Kg
• Outdoor Unit Weight: 28 Kg
• Indoor Dimensions (W×D×H): 890 × 310 × 220 mm
• Outdoor Dimensions (W×D×H): 780 × 300 × 550 mm
• Compressor Type: Rotary
